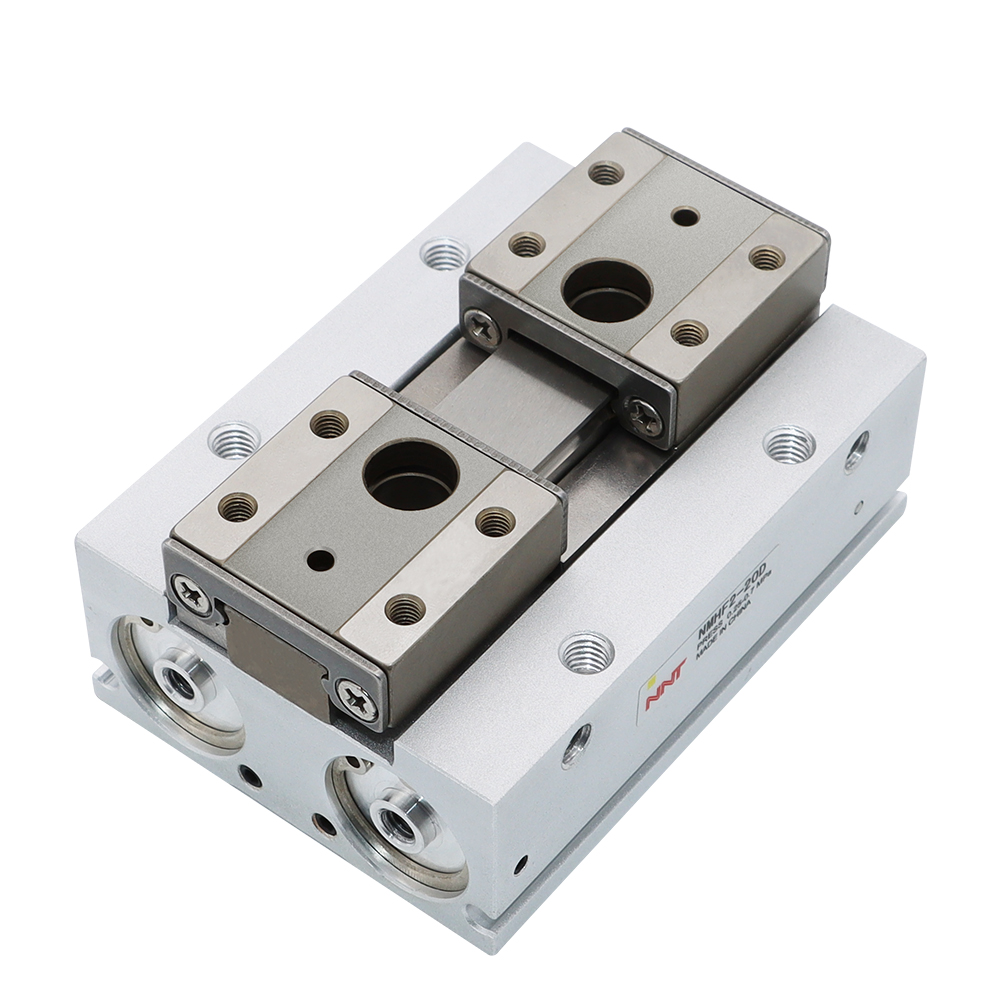

Air Actuator Gripper NMHF2
High-Speed Operation: Achieves cycle times <0.3 seconds for rapid pick-and-place and assembly tasks.
Adjustable Force & Stroke: Fine-tune gripping force (5–300N) and jaw stroke (2–30mm) via integrated pressure regulators.
Lightweight Aluminum Body: 40% lighter than steel alternatives, reducing robotic arm payload and energy consumption.

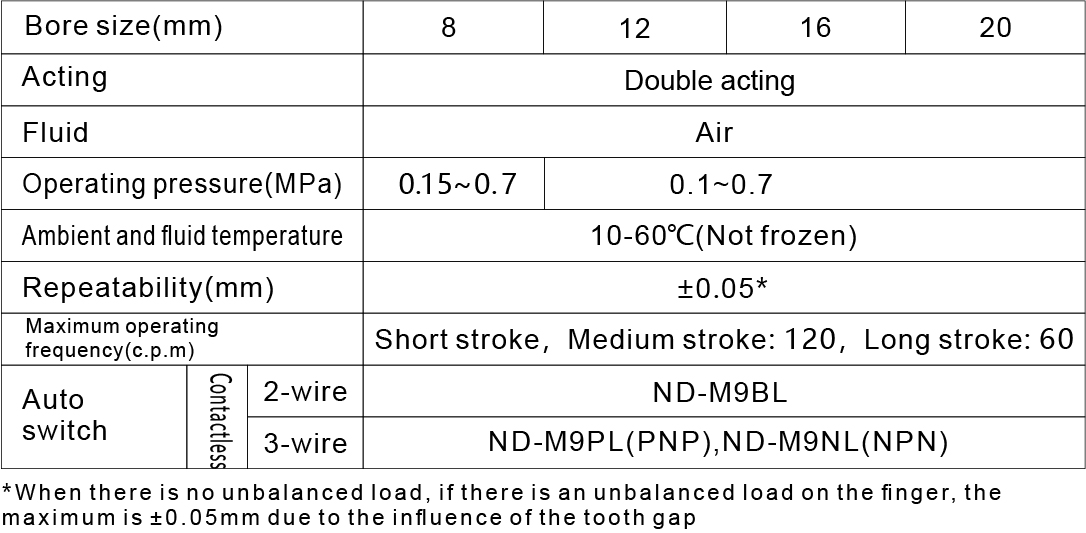

Parameter
| Value |
Operating Pressure
| 0.1 to 0.7 MPa |
Gripping Force
| 58 to 294N (adjustable) |
| Stroke Range | 8 to 80 mm (customizable)
|
Parameter

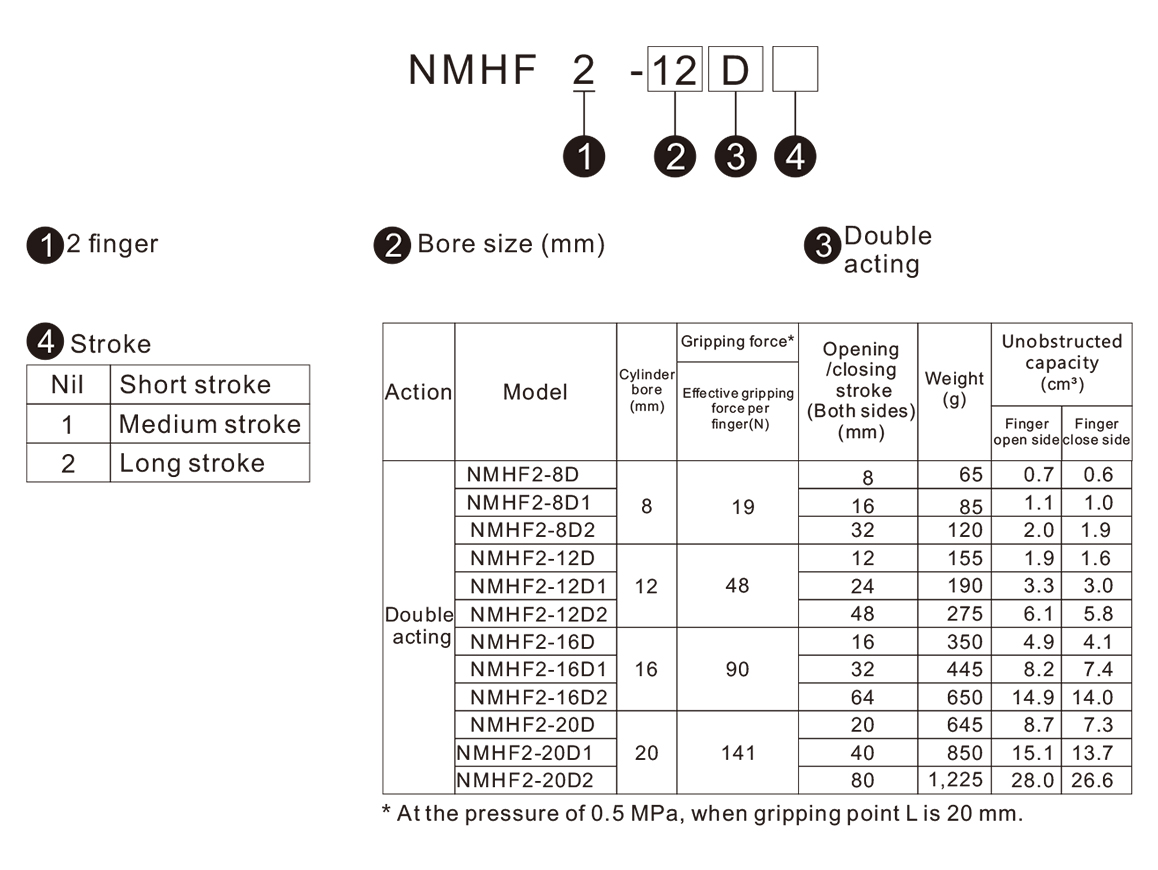

Ordering Code
