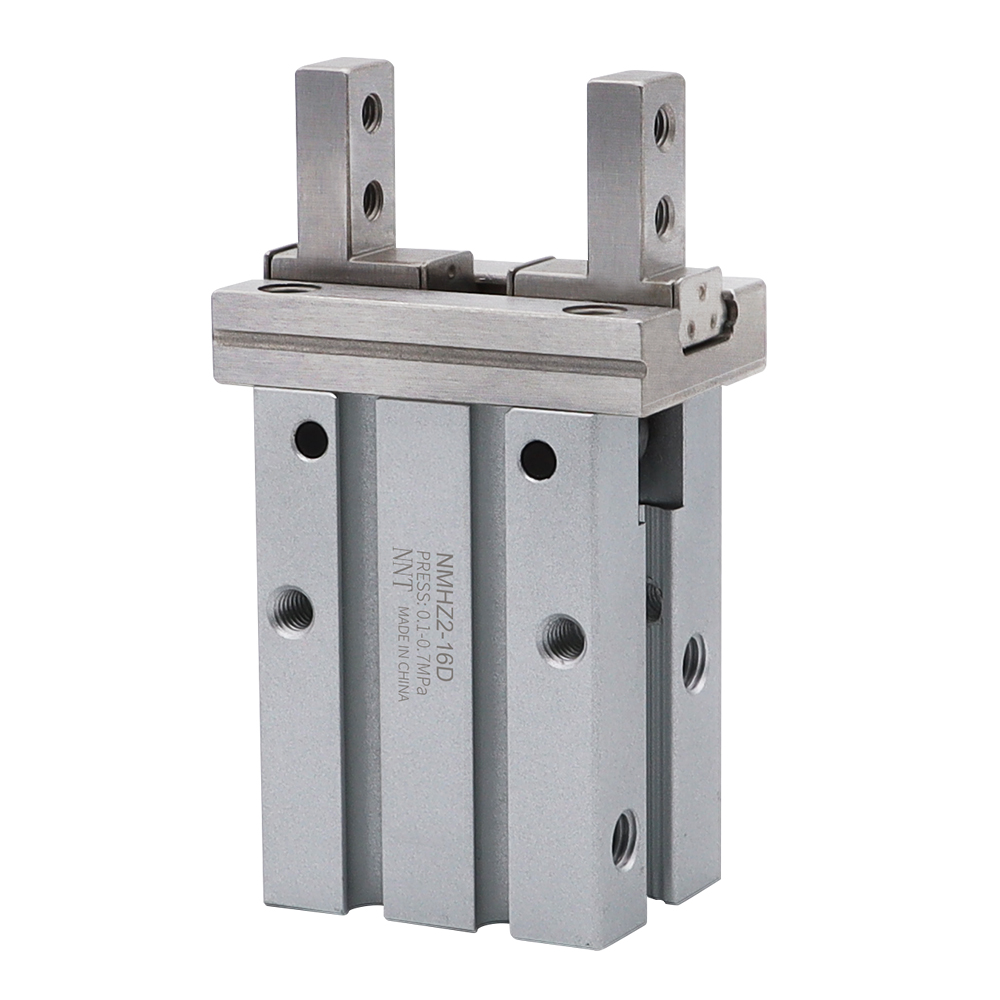

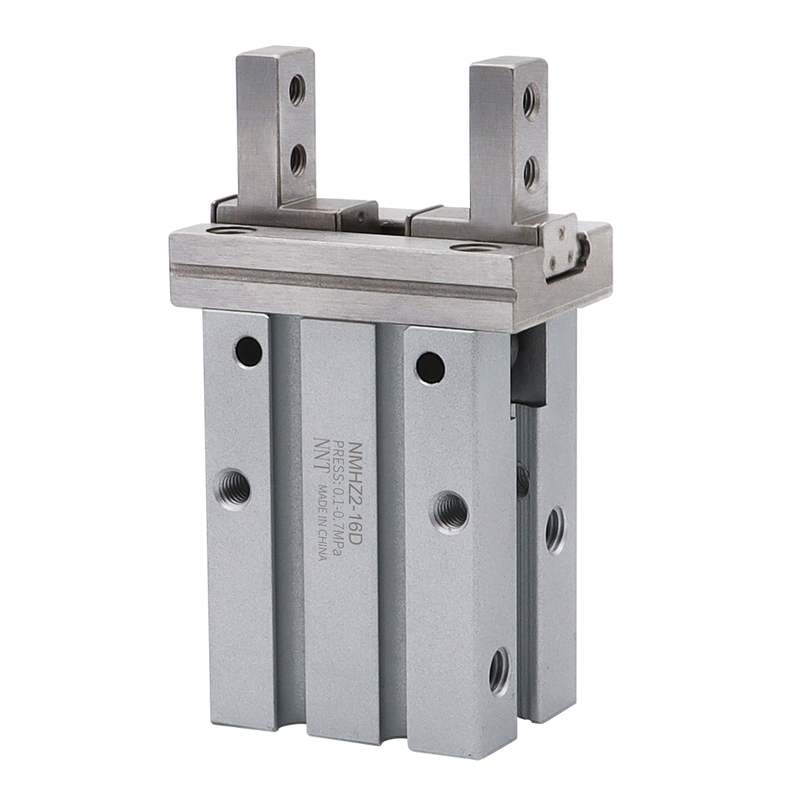

Pneumatic Gripper | High-Precision Parallel Actuation & IP65 Protection NMHZ2 | NNT

Advanced Parallel-Actuated Pneumatic Gripper for Precision Automation
Our Parallel-Actuated Pneumatic Gripper delivers exceptional accuracy and reliability in industrial gripping applications. Designed for robotic arms and automated assembly lines, this gripper combines IP67-rated protection with a lightweight aluminum body to withstand dust, moisture, and repetitive operations.
Availability:
Inquiry

linkedin sharing button
line sharing button
pinterest sharing button
facebook sharing button
twitter sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button

  • NMHZ2

  • NNT

Lightweight gripper showing pressure adjustment interface

Air Actuator Gripper NMHZ2 Applications


Robotic assembly (PCB handling, screwdriving)


CNC machine tending (workpiece loading/unloading)


Pharmaceutical packaging (blister pack handling)


Automotive parts sorting and inspection

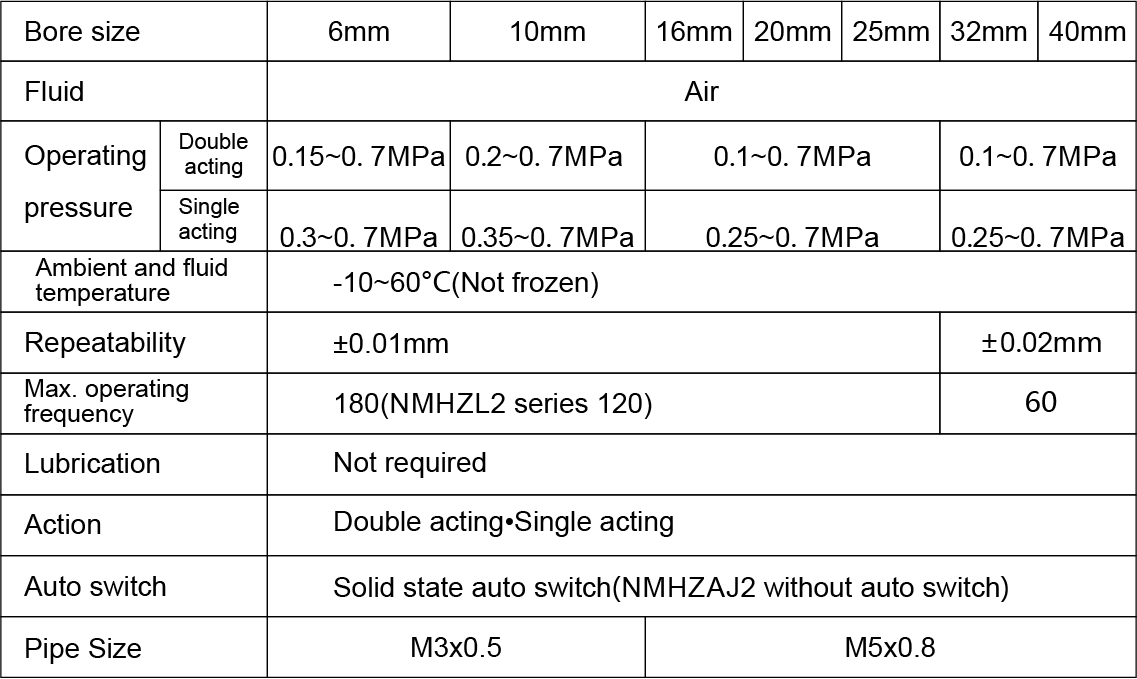

Parameter
 Value
Operating Pressure
 0.1 to 0.7 MPa
Gripping Force
 10 to 500N (adjustable)
Stroke Range 2 to 50 mm (customizable)


Parameter

Infographic detailing adjustable gripping force (10–500N)

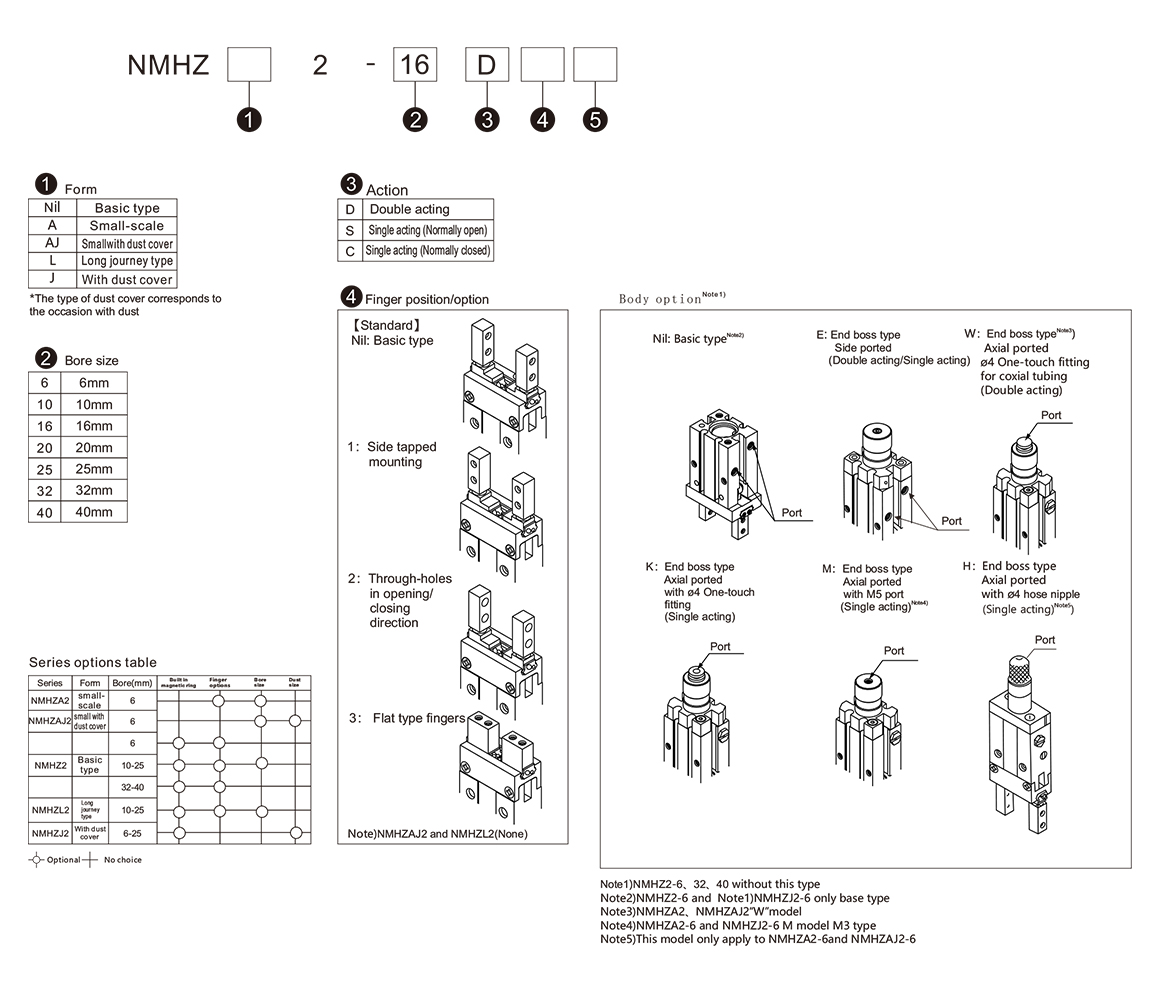

Ordering Code


Flowchart for selecting gripper models based on force requirements
