Air Gripper | NMHL2-Series High-Accuracy for Precise Handling | NNT

The NMHL2 Series is a high-accuracy pneumatic parallel air gripper engineered for precision gripping in automation tasks. With precise gripping control, it ensures accurate handling of workpieces and achieves repeatability within ±0.1 mm for consistent performance in critical applications.
This combination of precision and power makes the NMHL2 series ideal for high-accuracy assembly, pick-and-place robotics, and other automated handling operations where consistency and reliability are paramount.
Availability:
linkedin sharing button
line sharing button
pinterest sharing button
facebook sharing button
twitter sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
  • NMHL2

  • NNT

Internal mechanism of NMHL2 gripper showing dual-jaw drive system

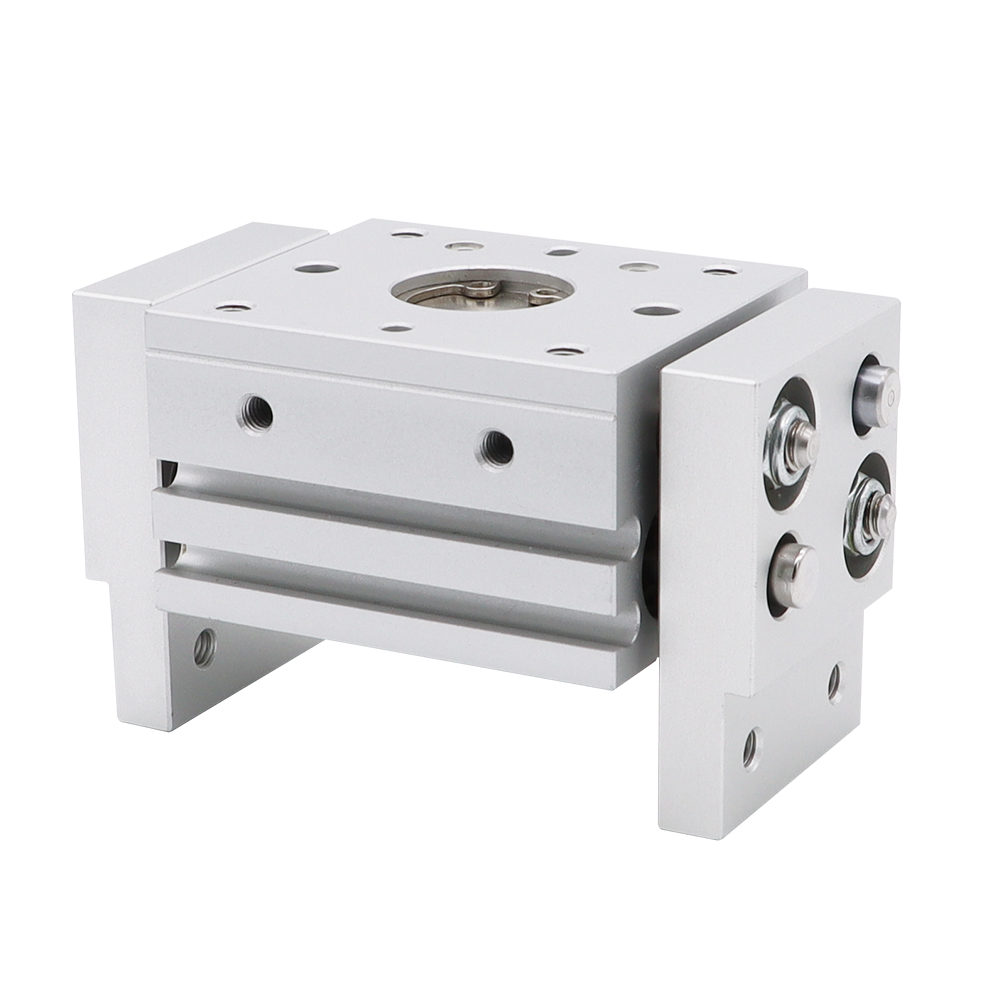

Air Actuator Gripper NMHL2


Ultra-High Precision: Achieves ±0.1mm positional repeatability for handling micro-components and delicate electronics.


Adjustable Gripping Force: Fine-tune force settings (10–500N) and jaw stroke (2–50mm) via integrated regulators.


Robust Construction: Corrosion-resistant materials ensure longevity in industrial environments with minimal maintenance.


Parameter
Value
Operating Pressure
0.1 to 0.6 MPa
Gripping Force
14 to 396N (adjustable)
Stroke Range 10 to 40 mm (customizable)


Parameter

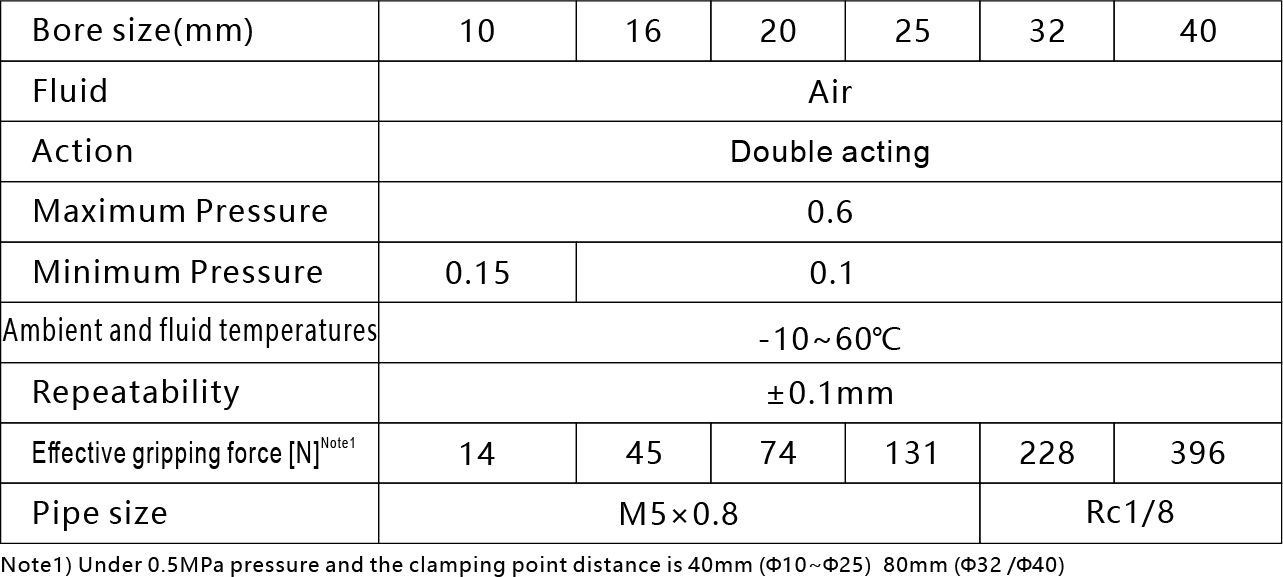

Technical specification chart for NMHL2 series air grippers



Ordering Code

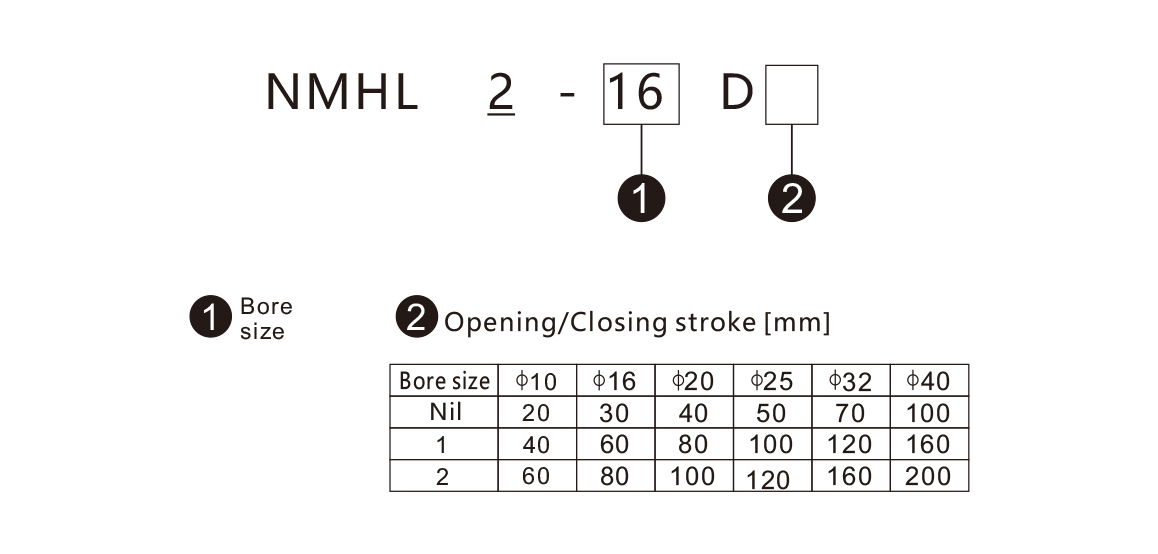

Model selection guide for NMHL2 series air grippers
