NNT Water Flow Meter & Sensor | Dual-Parameter Monitoring for Induction Furnace Cooling



Ensuring Semiconductor Furnace Safety Through Precision Cooling Control
Induction furnaces in semiconductor manufacturing require fail-safe cooling to prevent catastrophic failures and wafer loss. This article explains how dual-parameter flow switches mitigate risks by:

  • Simultaneous Flow/Temperature Tracking: Detect deviations as small as 0.2 L/min and ±0.3°C.

  • Multi-Stage Protection: Auto-reduce power or initiate shutdowns within <100ms of anomalies.

  • SEMI-Compliant Durability: 316L stainless steel resists corrosive coolants and high-pressure surges..

Our water flow sensor achieves ±0.5% accuracy in induction furnace cooling systems.

A case study demonstrates a 99.9% uptime improvement for a 300mm wafer fab.

[Explore Cooling Solutions →]


The Critical Role of Cooling in Semiconductor Induction Furnaces
Operating at 1,400–1,600°C, induction furnaces melt silicon for crystal growth. Cooling failures cause:

  • Quartz Crucible Cracks: $250k+ replacement costs.

  • Wafer Contamination: Metallic impurities from molten leaks.

  • Unplanned Downtime: 8+ hours to restart furnace cycles.


How Dual-Parameter Flow Switches Prevent Disasters

1. Nanoprecision Monitoring

  • Flow Range: 0.5 to 40 L/min (±0.5% FS) for precise DI water regulation.

  • Temperature Range: 0 to 100°C (±0.3°C) with PT1000-grade sensors.

  • Cross-Functional Logic: Distinguish pump failures (low flow + rising temp) from partial clogs (low flow + stable temp).


2. Instant Protective Actions

  • Stage 1 Alert: Notify operators at 90% flow/temp thresholds.

  • Stage 2 Response: Reduce heating power by 50% via PLC.

  • Stage 3 Shutdown: Isolate furnace if flow drops below 70% for >3s.

[Download Furnace Cooling Optimization Guide →]


3. Ruggedized for Harsh Environments

  • 150 PSI Rating: Withstand water hammer from rapid valve closures.

  • IP67 Protection: Operate submerged in coolant tanks.

  • Zero False Triggers: EMI shielding prevents signal noise in high-RF zones.


Case Study: 300mm Silicon Wafer Production
A leading foundry achieved:

  • 99.9% Uptime: Eliminated 12 furnace shutdowns/year.

  • 30% Energy Savings: Optimized cooling matched to melt cycles.

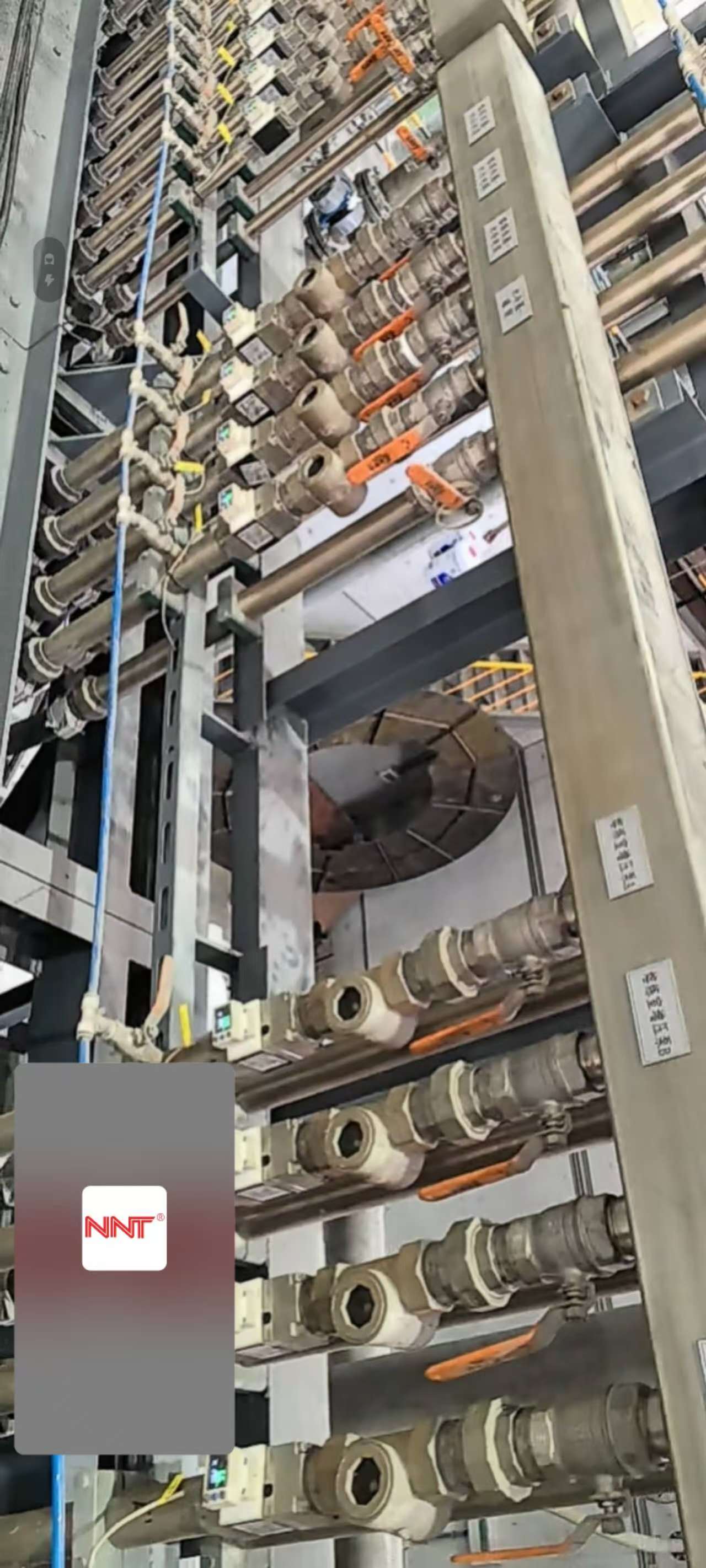

NNT water flow meter and sensor installed in induction furnace cooling pipeline

Technical Advantages

  • Self-Cleaning Sensors: Ultrasonic pulse prevents mineral buildup.

  • Multi-Protocol Outputs: 4–20mA, ModBus, or EtherCAT integration.

[Request a Free Cooling Audit →]
