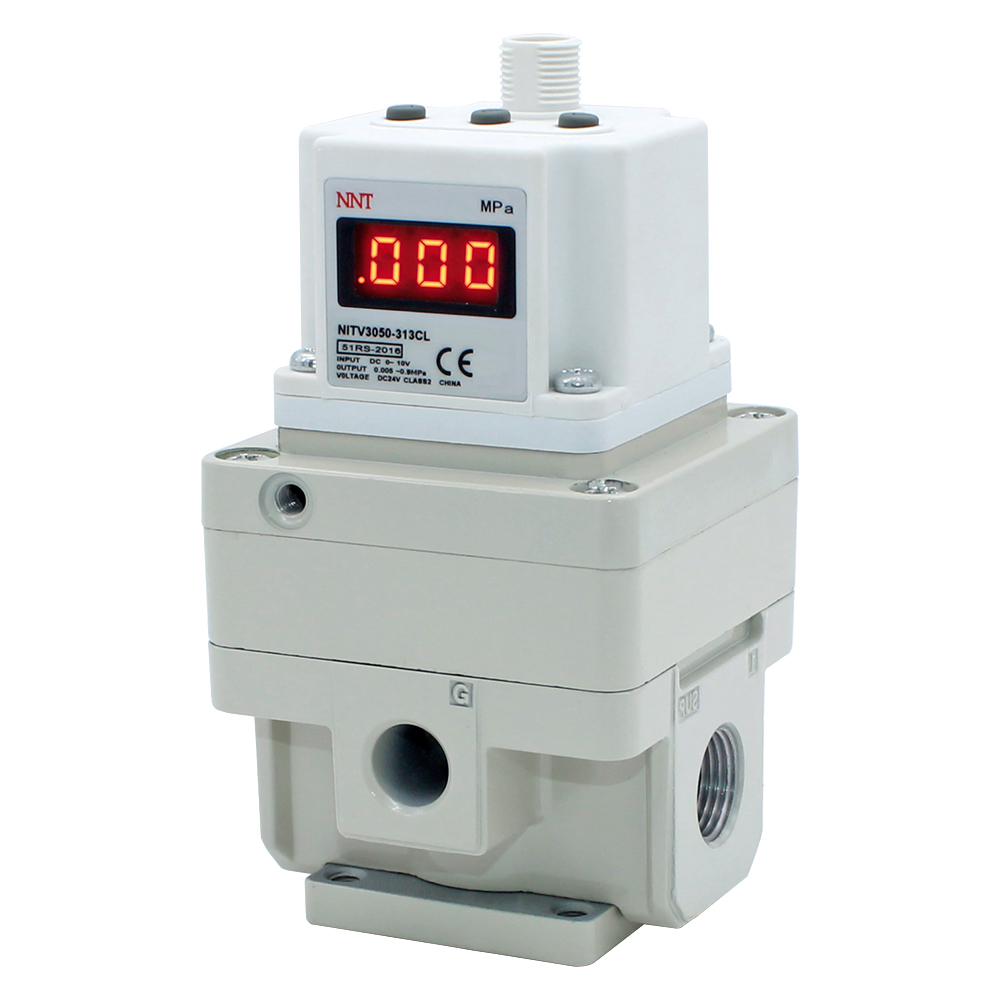

NITV3000
NNT
Model | NITV101□ | NITV103□ | NITV105□ | |
NITV201□ | NITV203□ | NITV205□ | ||
NITV301□ | NITV303□ | NITV305□ | ||
Minimum supply pressure | Set pressure +0.1 MPa | |||
Maximum supply pressure | 0.2 MPa | 1.0 MPa | ||
Set pressure range | 0.005 to 0.1 MPa | 0.005 to 0.5 MPa | 0.005 to 0.9 MPa | |
Power supply | Voltage | 24 VDC ± 10%, 12 to 15 VDC | ||
Current consumption | Power supply voltage 24 VDC type: 0.12 A or less Power supply voltage 12 to 15 VDC type: 0.18 A or less | |||
Input signal | Current type | 4 to 20 mA DC, 0 to 20 mA DC (Sink type) | ||
Voltage type | 0 to 5 VDC, 0 to 10 VDC | |||
Preset input | 4 points (Negative common), 16 points (No common polarity) | |||
Digital input | 10 bit (Parallel) | |||
Input impedance | Current type | 250 Ω or less | ||
Voltage type | Approx. 6.5 kΩ | |||
Preset input | Power supply voltage 24 VDC type: Approx. 4.7 kΩ Power supply voltage 12 VDC type: Approx. 2.0 kΩ | |||
Digital input | Approx. 4.7 kΩ | |||
Output signal(monitor output) | Analog output | 1 to 5 VDC (Output impedance: Approx. 1 kΩ) 4 to 20 mA DC (Sink type) (Output impedance: 250 Ω or less) Output accuracy ± 6% F.S. or less | ||
Switch output | NPN open collector output: Max. 30 V, 80 mA PNP open collector output: Max. 80 mA | |||
Linearity | ± 1% F.S. or less | |||
Hysteresis | 0.5% F.S. or less | |||
Repeatability | ± 0.5% F.S. or le | |||
Sensitivity | 0.2% F.S. or less | |||
Temperature characteristics | ± 0.12% F.S./°C or less | |||
Output pressure display | Accuracy | ± 2% F.S. ± 1 digit or less | ||
Minimum unit | MPa: 0.001, kgf/cm2: 0.01, bar: 0.01, psi: 0.1, kPa: 1 | |||
Ambient and fluid temperature | 0 to 50°C (No condensation) | |||
Enclosure | IP65 |
Model | NITV101□ | NITV103□ | NITV105□ | |
NITV201□ | NITV203□ | NITV205□ | ||
NITV301□ | NITV303□ | NITV305□ | ||
Minimum supply pressure | Set pressure +0.1 MPa | |||
Maximum supply pressure | 0.2 MPa | 1.0 MPa | ||
Set pressure range | 0.005 to 0.1 MPa | 0.005 to 0.5 MPa | 0.005 to 0.9 MPa | |
Power supply | Voltage | 24 VDC ± 10%, 12 to 15 VDC | ||
Current consumption | Power supply voltage 24 VDC type: 0.12 A or less Power supply voltage 12 to 15 VDC type: 0.18 A or less | |||
Input signal | Current type | 4 to 20 mA DC, 0 to 20 mA DC (Sink type) | ||
Voltage type | 0 to 5 VDC, 0 to 10 VDC | |||
Preset input | 4 points (Negative common), 16 points (No common polarity) | |||
Digital input | 10 bit (Parallel) | |||
Input impedance | Current type | 250 Ω or less | ||
Voltage type | Approx. 6.5 kΩ | |||
Preset input | Power supply voltage 24 VDC type: Approx. 4.7 kΩ Power supply voltage 12 VDC type: Approx. 2.0 kΩ | |||
Digital input | Approx. 4.7 kΩ | |||
Output signal(monitor output) | Analog output | 1 to 5 VDC (Output impedance: Approx. 1 kΩ) 4 to 20 mA DC (Sink type) (Output impedance: 250 Ω or less) Output accuracy ± 6% F.S. or less | ||
Switch output | NPN open collector output: Max. 30 V, 80 mA PNP open collector output: Max. 80 mA | |||
Linearity | ± 1% F.S. or less | |||
Hysteresis | 0.5% F.S. or less | |||
Repeatability | ± 0.5% F.S. or le | |||
Sensitivity | 0.2% F.S. or less | |||
Temperature characteristics | ± 0.12% F.S./°C or less | |||
Output pressure display | Accuracy | ± 2% F.S. ± 1 digit or less | ||
Minimum unit | MPa: 0.001, kgf/cm2: 0.01, bar: 0.01, psi: 0.1, kPa: 1 | |||
Ambient and fluid temperature | 0 to 50°C (No condensation) | |||
Enclosure | IP65 |
Solenoid Valve Cycling rate: 30 Hz Lifespan: 100,000,000 times Temperature range: -20℃ to 70℃ | Pressure Sensor Reaction: 0.36 s Sensitivity: 0.2 F.S. or less Strong stability, consistent pressure at different temperature The circuit board has passed the EMC test and has strong anti-interference, more pressure sensitive | Diaphragm Non-lubrication Low friction loss Leakproof More than 5 years lifespan |
Solenoid Valve Cycling rate: 30 Hz Lifespan: 100,000,000 times Temperature range: -20℃ to 70℃ | Pressure Sensor Reaction: 0.36 s Sensitivity: 0.2 F.S. or less Strong stability, consistent pressure at different temperature The circuit board has passed the EMC test and has strong anti-interference, more pressure sensitive | Diaphragm Non-lubrication Low friction loss Leakproof More than 5 years lifespan |
