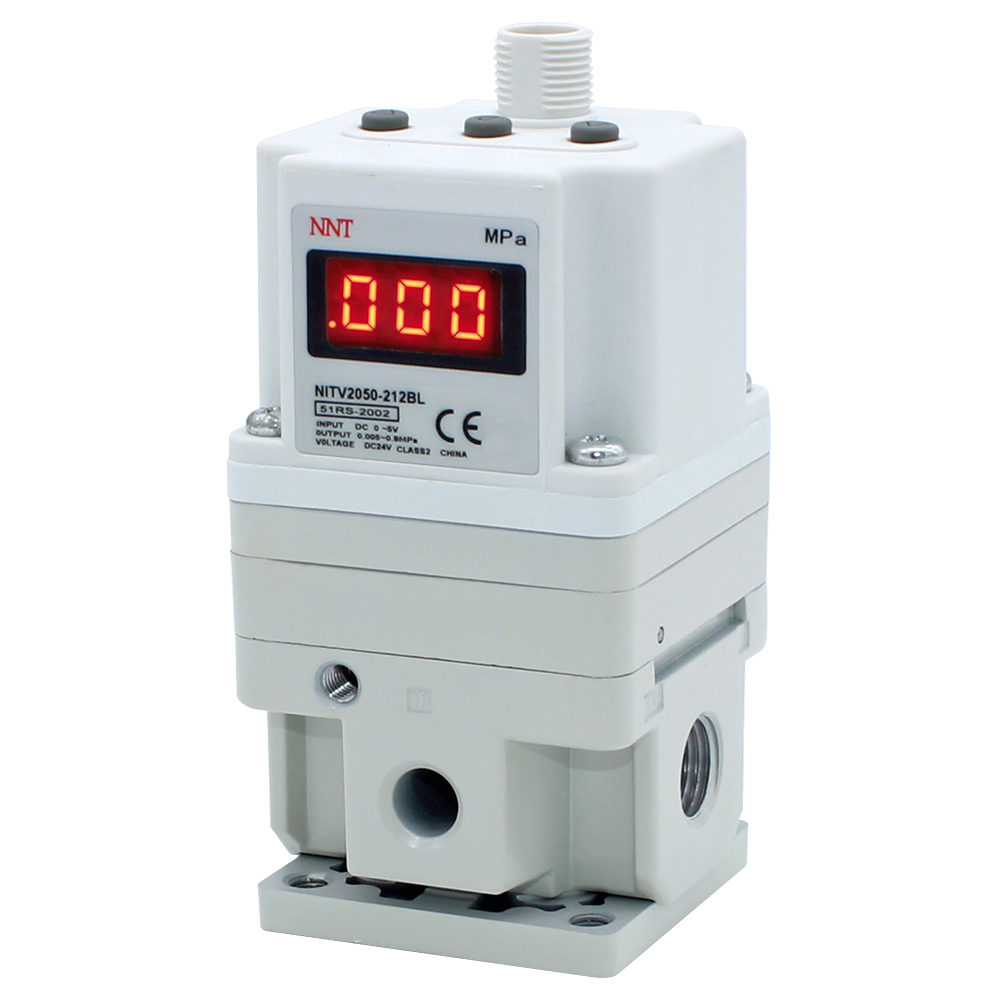

E/P Regulator NITV2000 Series

Availability:
linkedin sharing button
line sharing button
pinterest sharing button
facebook sharing button
twitter sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
  • NITV2000

  • NNT

ModelNITV101NITV103NITV105
NITV201NITV203NITV205
NITV301NITV303NITV305
Minimum supply pressureSet pressure +0.1 MPa
Maximum supply pressure0.2 MPa1.0 MPa
Set pressure range0.005 to 0.1 MPa0.005 to 0.5 MPa0.005 to 0.9 MPa
Power supplyVoltage24 VDC ± 10%, 12 to 15 VDC
Current consumption

Power supply voltage 24 VDC type: 0.12 A or less

Power supply voltage 12 to 15 VDC type: 0.18 A or less

Input signalCurrent type 4 to 20 mA DC, 0 to 20 mA DC (Sink type)
Voltage type 0 to 5 VDC, 0 to 10 VDC
Preset input4 points (Negative common), 16 points (No common polarity)
Digital input10 bit (Parallel)
Input impedanceCurrent type250 or less
Voltage typeApprox. 6.5 k
Preset input

Power supply voltage 24 VDC type: Approx. 4.7 k

Power supply voltage 12 VDC type: Approx. 2.0 k

Digital inputApprox. 4.7 k
Output signal(monitor  output) Analog output

1 to 5 VDC (Output impedance: Approx. 1 k

 4 to 20 mA DC (Sink type) (Output impedance: 250 or less)

Output accuracy ± 6% F.S. or less

Switch output

NPN open collector output: Max. 30 V, 80 mA

PNP open collector output: Max. 80 mA

Linearity± 1% F.S. or less
Hysteresis0.5% F.S. or less
Repeatability± 0.5% F.S. or le
Sensitivity0.2% F.S. or less
Temperature characteristics ± 0.12% F.S./°C or less
Output pressure displayAccuracy± 2% F.S. ± 1 digit or less
Minimum unitMPa: 0.001, kgf/cm2: 0.01, bar: 0.01, psi: 0.1, kPa: 1
Ambient and fluid temperature 0 to 50°C (No condensation)
EnclosureIP65

Electric Pneumatic Regulator Core Part

Pressure Regulator NITV2000

Regulator Solenoid Valve

Solenoid Valve


Cycling rate: 30 Hz


Lifespan: 100,000,000 times


Temperature range: -20℃ to 70℃




Regulator Pressure Sensor

Pressure Sensor


Reaction: 0.36 s


Sensitivity: 0.2 F.S. or less


Strong stability, consistent pressure at different temperature


The circuit board has passed the EMC test and has strong anti-interference, more pressure sensitive



Regulator Diaphragm

Diaphragm


Non-lubrication


Low friction loss


Leakproof


More than 5 years lifespan




Regulator Order Model Type

Electric Pneumaitc Pressure Regulator

NNT Strength

Manufacture Department

Production Line

Electric Manufacture Department

Testing Center

Certificates

Exhibition


Application

The automatic design of the drafting system has an intelligent optimization feature. When the conventional pressure reducing valve that controls the working air pressure is changed to an electric proportional valve, the pressure control of each zone of the cradle can be realized by controlling the input signal of each electric proportional valve.
