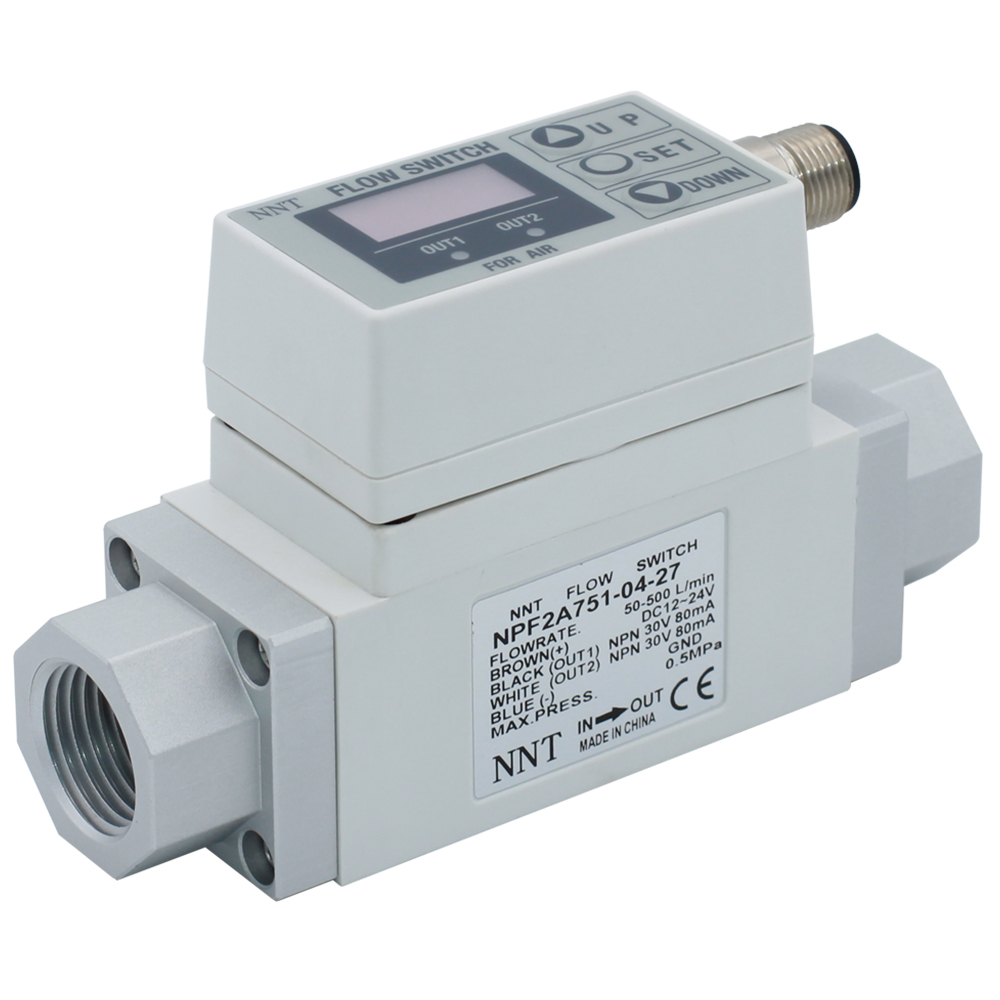

NPF2A7 Digital Flow Sensor

Port siez Rc(PT)1/81/43/83/81/2
Measured fluidAir, Nitrogen
Flow rate measurement range(L/min)1~105~5010~10020~20050~500
Minimum set unit(L/min)0.10.5125
Accumulated pulse flow rate exchange value(Pulse width: 50 ms)0.1L/1pulse0.5L/1pulse1L/1pulse2L/1pulse5L/1pulse
Display unitsInstantaneous flow rateL/min,CFMx10-2L/min,CFMx10-1
Accumulated flowL,ft3x10-1
Operating pressure range-50kPa~0.5MPa-50kPa~0.75MPa
Operating fluid temperature0-50C
Power supply voltageDC 24V±10%
Current consumption150mA or less160mA or less170mA or less
Accumulated flow range0-999999L
Detection typeHeater type
Straightness±5% F.S.
Repetition accuracy±1% F.S.±2% F.S.
Temperature characteristics±3% F.S. (15 to 35°C, 25°C reference), ±5% F.S. (0 to 50°C, 25°C reference)
Switch outpuNPN open collector Maximum load current: 80 mA; Internal voltage drop: 1 V or less. Maximum applied voltage: 30 V; 2 outputs
Accumulated pulse outputNPN or PNP open collector (same as switch output)
HysteresisHysteresis mode: Variable (can be set from 0), Window comparator mode : 3-digit fixed
Response timeLights up when output is turned ON OUT1: Green; OUT2: Red
Status LED1s or less
Operating temperature rangeOperating: 0 to 50°C, Stored: –25 to 85°C (with no freezing and condensation)
Withstand voltage1000 VAC for 1 minute between terminals and housing
Insulation resistance50 MΩ or more (500 VDC measured via megohmmeter) between terminals and housing
Noise resistance1000V P-P Pulse width 1 μ s, duration 1 ns
Conductor specificationM12 connector(3m)
