Precision Regulator | IP65 Industrial Grade & Closed-Loop Control

Advanced Precision Pressure Regulator for Industrial Automation
Our High-Precision Pressure Regulator delivers exceptional accuracy (±0.5% repeatability) in air and gas pressure control, designed for mission-critical industrial applications. With closed-loop feedback and IP65-rated construction, it ensures reliable performance in dusty, humid, or high-vibration environments.
Availability:
linkedin sharing button
line sharing button
pinterest sharing button
facebook sharing button
twitter sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
  • NIR1/2/3000

  • NNT

Compact pressure control valve

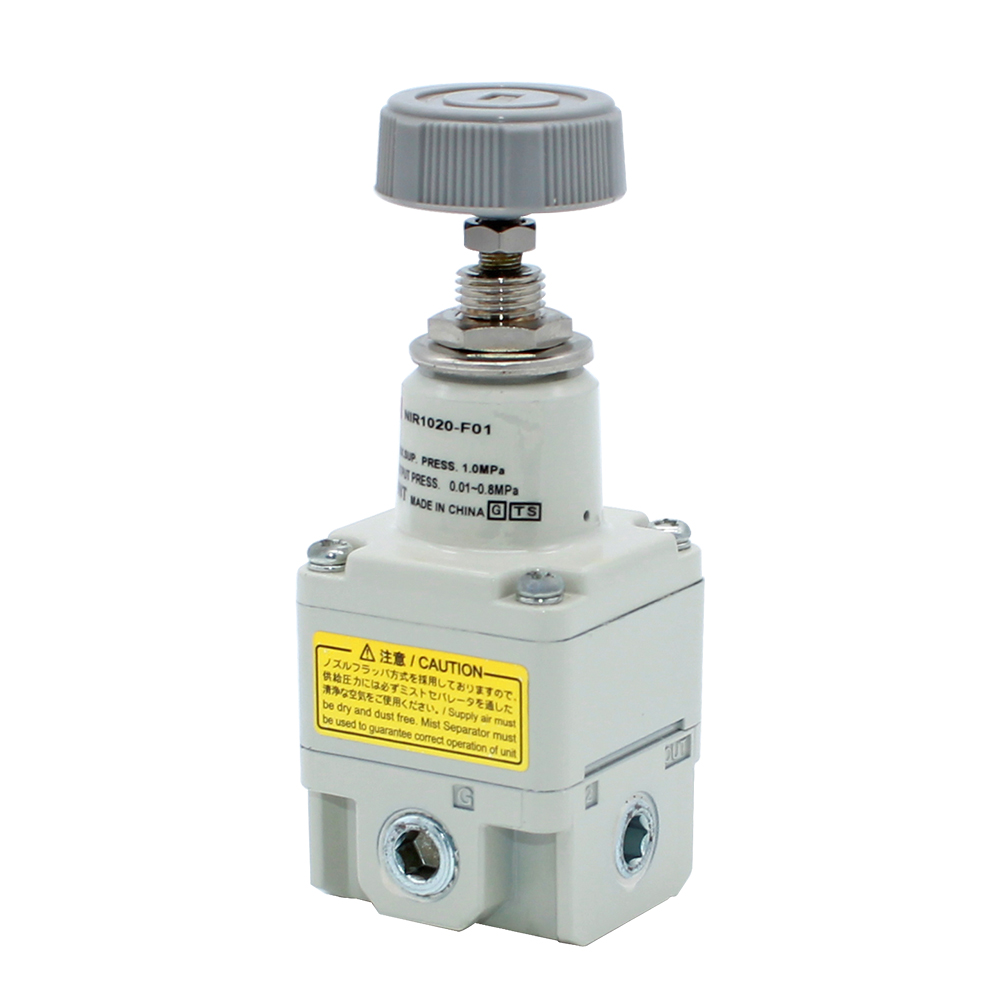

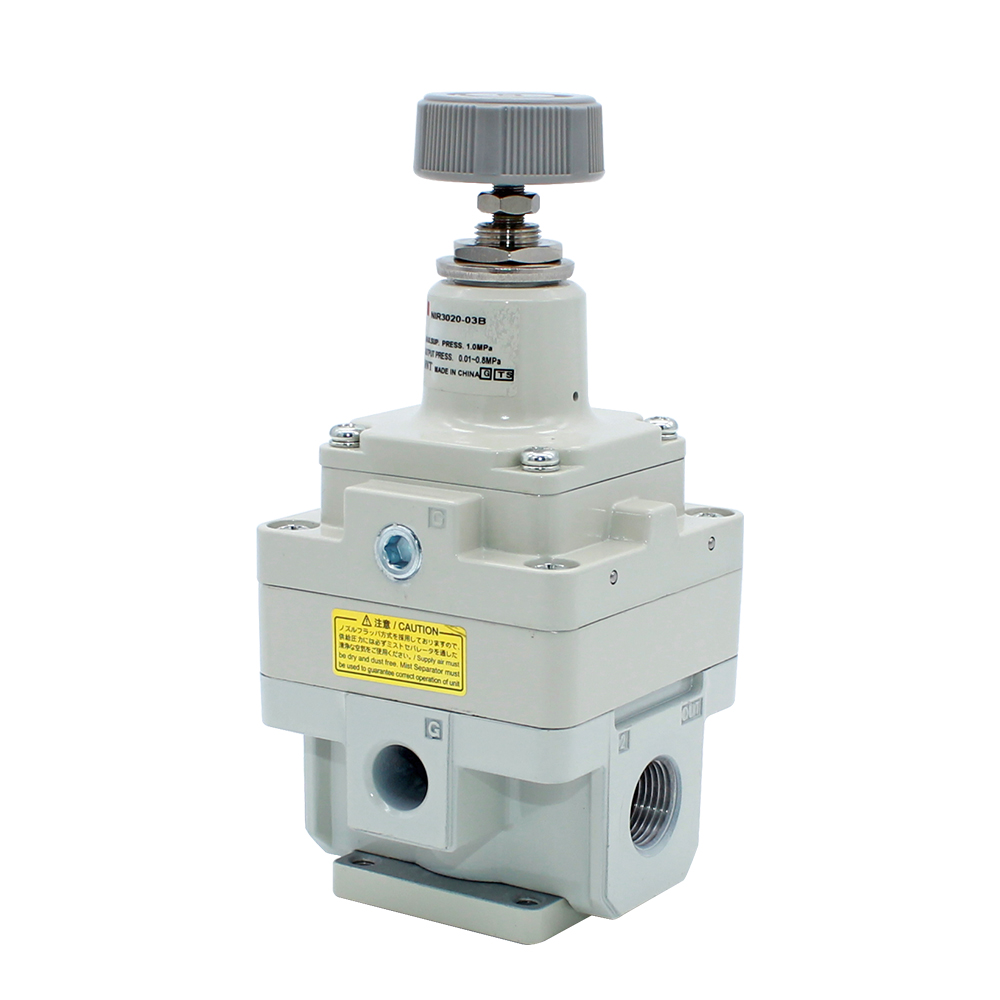

Precision Proportional Valve NIR1/2/3000


Closed-Loop LVDT Feedback: Real-time pressure adjustments with <0.5% hysteresis for dynamic applications like CNC tooling.


Energy-Efficient Design: Reduces compressed air consumption by up to 20% through optimized flow paths.


Multi-Protocol Communication: Compatible with EtherCAT, RS-485, and analog signals (4–20 mA/0–10 V) for seamless PLC/IoT integration.

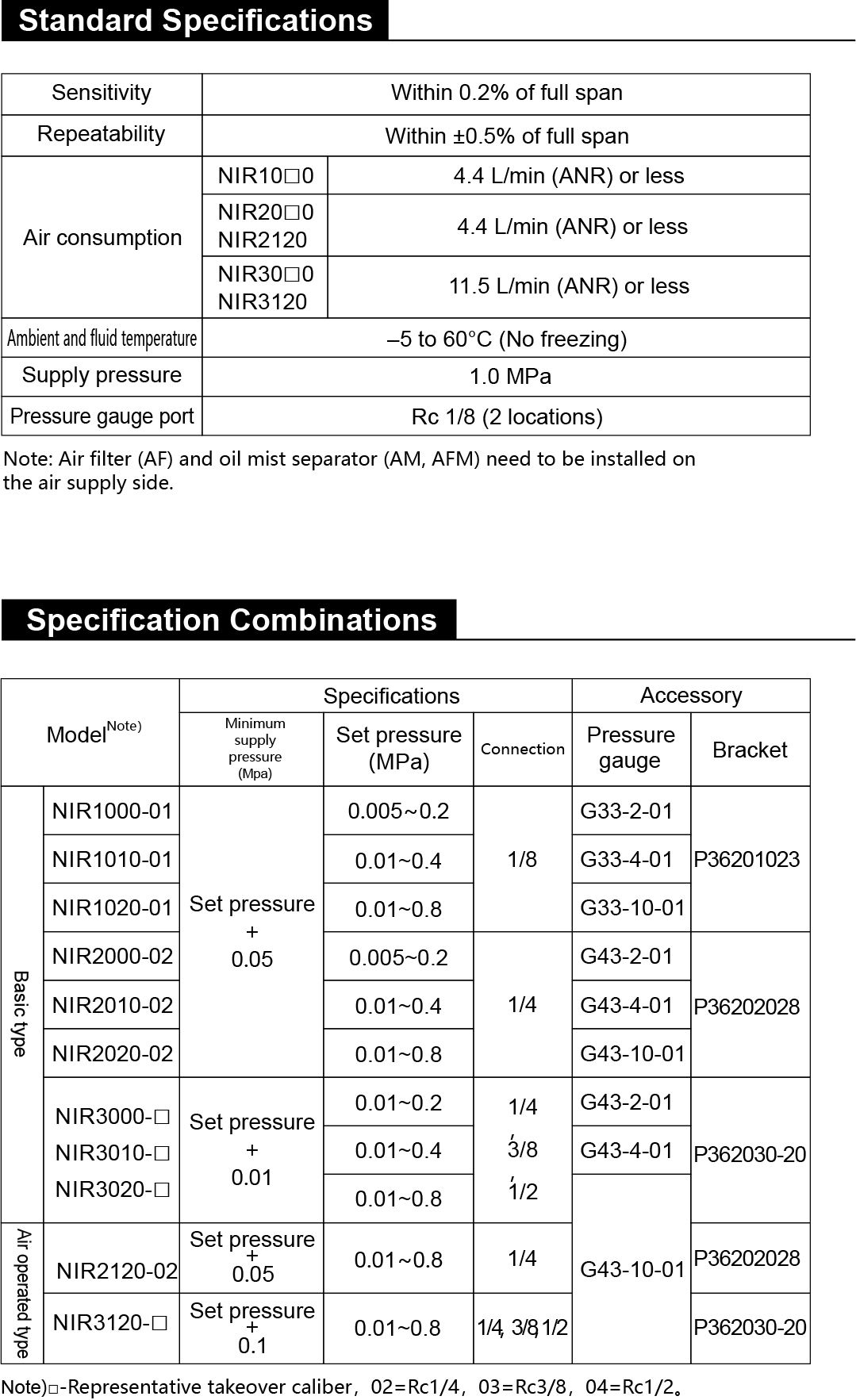

Parameter
Value
Max. Supply Power
1 MPa
Accuracy
±0.5% F.S.
Setting Pressure Range 0.005 to 0.8 MPa


Parameter

Infographic detailing 0.01–1.0 MPa pressure range

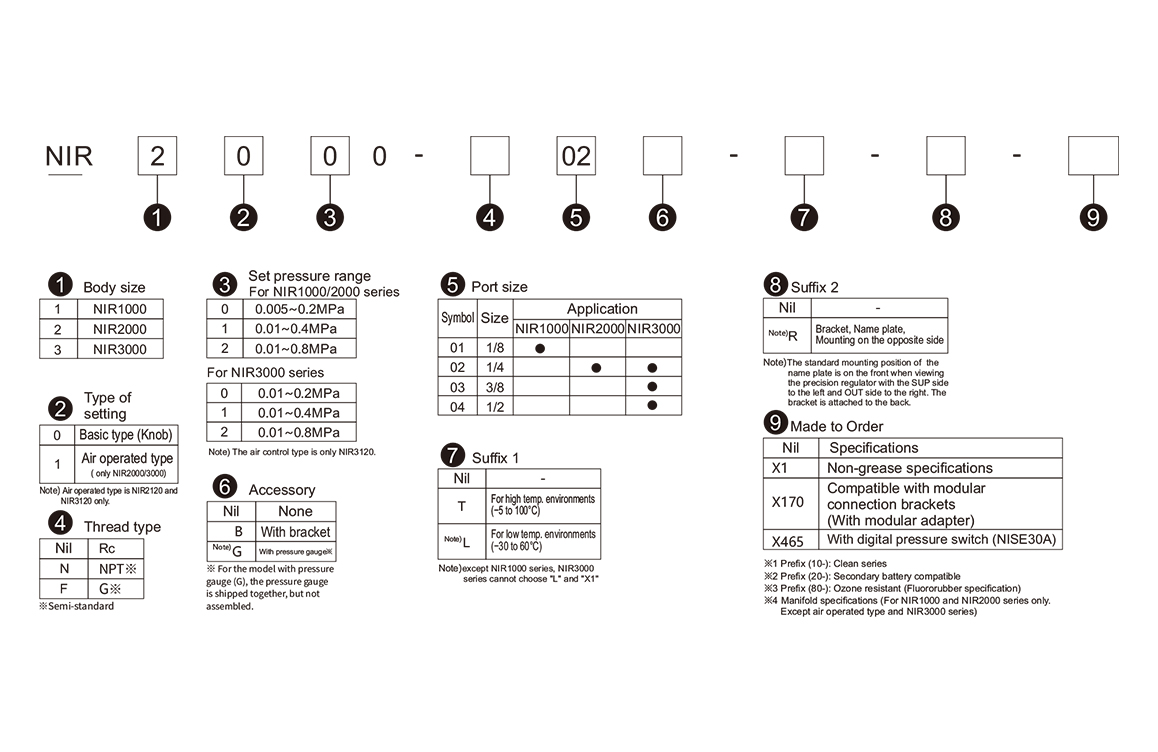

Ordering Code


Flowchart for selecting regulator
