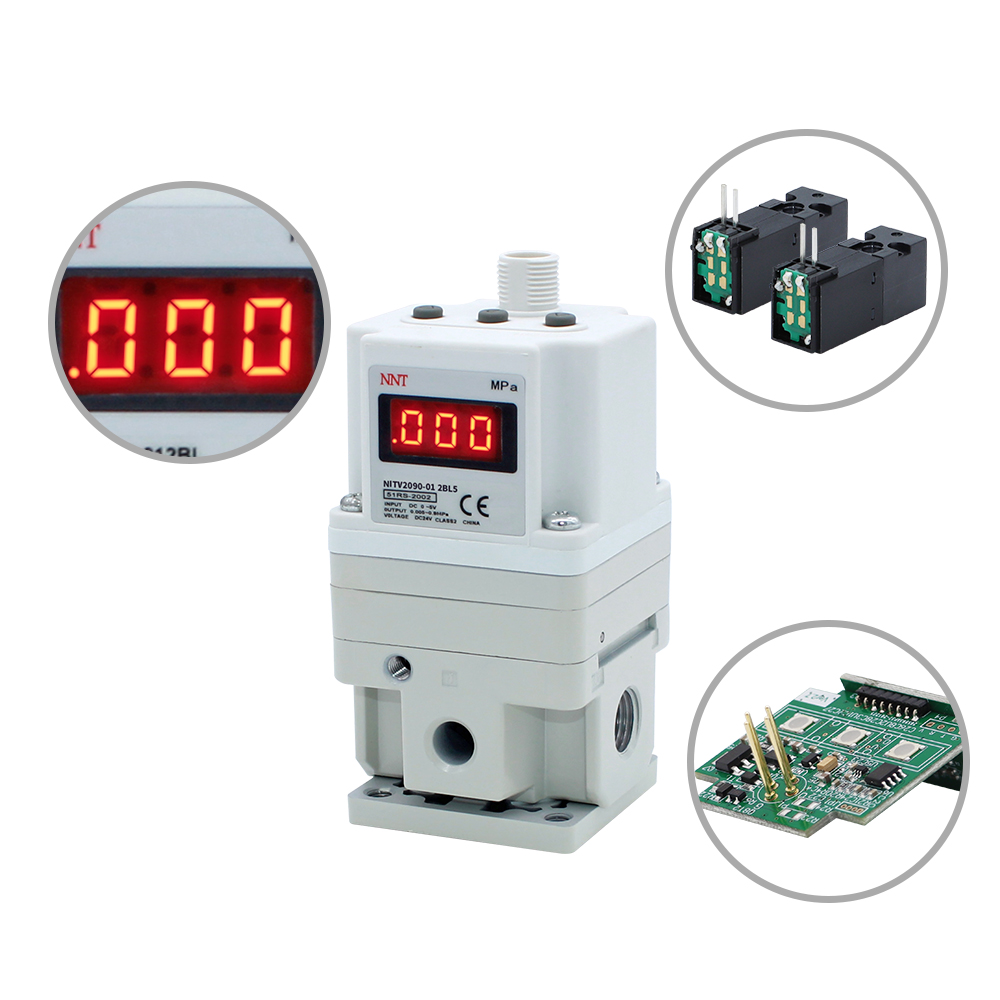

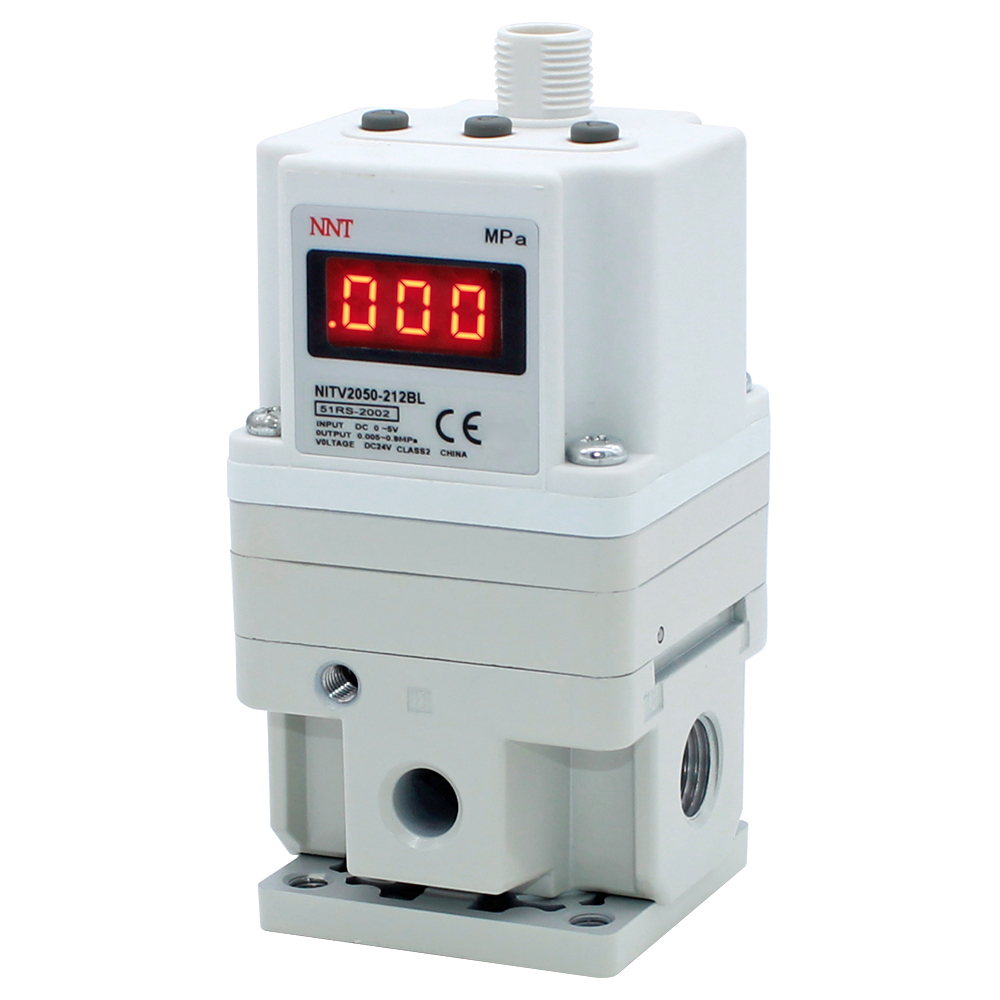

Electric Pneumatic Regulator Vacuum series●NNT pneumatic component. We have the mature craft and the production line, the corrosion resistant and robust design along with a wide range of options makes it ideal for OEM. ●E/P regulator, Air gripper, Precision regulator, Digital pressure switch, Flow switch, Air cylinder else. ●Our company puts most of energy in product quality inspection and has imported testing equipment to ensure the high quality, so that we can provide a guarantee of our product and then customers can use it trustingly. |
| Model | NITV2090 | NITV2091 | |
|---|---|---|---|
| Minimum supply vacuum pressure | Set pressure –13.3 kPa | ||
| Maximum supply vacuum pressure | –101 kPa | ||
| Set pressure range | –1.3 to –80 kPa | ||
| Power supply | Voltage | 24 VDC ±10% | 12 to 15 VDC |
| Current consumption | Power supply voltage 24 VDC type: 0.12 A or less Power supply voltage 12 to 15 VDC type: 0.18 A or less | ||
| Input signal | Current type | 4 to 20 mA DC, 0 to 20 mA DC (Sink type) | |
| Voltage type | 0 to 5 VDC, 0 to 10 VDC | ||
| Preset input | 4 points (Negative common), 16 points (No common polarity) | ||
| Digital input | 10 bit (Parallel) | ||
| Input impedance | Current type | 250 Ω or less | |
| Voltage type | Approx. 6.5 kΩ | ||
| Preset input | Power supply voltage 24 VDC type: Approx. 4.7 kΩ Power supply voltage 12 VDC type: Approx. 2.0 kΩ | ||
| Digital input | Approx. 4.7 kΩ | ||
| Output signal (Monitor output) | Analog output | 1 to 5 VDC (Output impedance: Approx. 1 kΩ) 4 to 20 mA DC (Sink type) (Output impedance: 250 Ω or less) Output accuracy ± 6% F.S. or less | |
| Switch output | NPN open collector output: Max. 30 V, 80 mA PNP open collector output: Max. 80 mA | ||
| Linearity | ± 1% F.S. or less | ||
| Hysteresis | 0.5% F.S. or less | ||
| Repeatability | ± 0.5% F.S. or less | ||
| Sensitivity | 0.2% F.S. or less | ||
| Temperature characteristics | ± 0.12% F.S./°C or less | ||
| Output pressure display | Accuracy | ± 2% F.S. ± 1 digit or less | |
| Units | kPa Note 5) Minimum display: 1 | ||
| Ambient and fluid temperature | 0 to 50°C (No condensation) | ||
| Enclosure | IP65 | ||
 Solenoid Valve Cycling rate: 30 Hz Lifespan: 100,000,000 times Temperature range: -20℃ to 70℃ |  Pressure Sensor Reaction: 0.36 s Sensitivity: 0.2 F.S. or less Strong stability, consistent pressure at different temperature The circuit board has passed the EMC test and has strong anti-interference, more pressure sensitive |  Diaphragm Non-lubrication Low friction loss Leakproof More than 5 years lifespan |
 Laser Cutting Machine |  Packing Machine |
PCB Machine |
| |
 NNT Pneumatic |  Production Line |  Test |
 ISO Certificates |  Contact Us |  CE Certificates |
| About us | |
NNT is devoted to provide high quality industrial pneumatic control components to the domestic and international customers. We've been focusing on products innovation, R&D(research and development) and quality control, which also enables NNT in the peer enjoy a good reputation. This is Jacob. Contact me for product details and attractive price. Whatsapp: +86 17702626719 Wechat: 17702626719 Email: jacob@nntqd.com |
